    Durable yet refined drive and cooling solutions enable us to achieve lowest possible power consumption values. This, in combination with a Kaeser heat recovery system, also allows you to significantly reduce your heating costs. We’d be glad to help you with a solution that meets your exact needs.

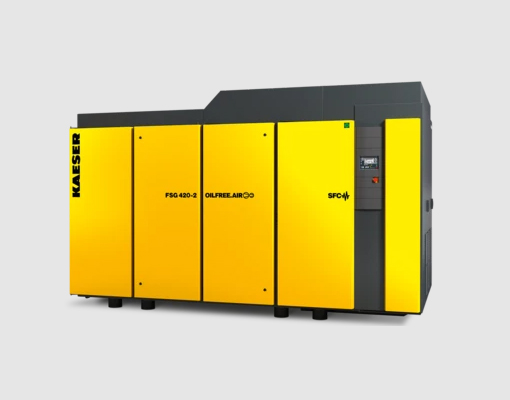

    Thanks to their compact design and type-dependant small exhaust air duct, our water-cooled oil-free compression rotary screw compressors earn extra points when it comes to installation in low-ceiling areas.
    * Flow rates from 3.3 to 50.8 m³/min
    * Also available as a peak-load model with variable-speed control and frequency converter (SFC model versions)
    * Also available with integrated i.HOC rotation dryer (DSG-2 series)

    Categories ,

    Your advantages

    Extraordinarily low compressed air discharge temperature:
    The tube bundle of the two air/water heat exchangers consists of high-quality CuNi10Fe pipes with welded-on aluminium star profile for optimal heat conduction.

    Lower costs thanks to heat recovery:
    With a Kaeser heat recovery system, up to 96% of compres

    Maintenance-friendly:
    The air/water heat exchangers of the 1st and 2nd compression stages are housed in two separate enclosures, each with optimal accessibility thanks to large service doors.

    Complete package
    * Ready for operation
    * Fully automatic
    * Silenced
    * Vibration-damped
    * Service-friendly design
    * For ambient temperatures up to +45 °C

    Airend
    * Two-stage, dry compression rotary screw compressor with precision gearing as per AGMA Q13/DIN- 5
    * 2nd compression stage uses stainless steel rotors and jacket cooling
    * Rotors feature durable coating
    * Integrated oil tank with oil tank ventilation
    * Fibre-free pulse dampers downstream of both compression stages

    Drive motor
    * Internationally renowned SIEMENS manufacture
    * Premium and Super Premium Efficiency Motor
    * Continuous monitoring of motor winding temperature
    * Enclosure protection: IP 55

    Cooling
    * Separate shell and tube heat exchangers consisting of coated steel jacket and CuNi10Fe pipes
    * Copper-soldered plate-type heat exchanger as gear oil cooler

    Electrical components
    * Control cabinet to IP 54
    * Control cabinet ventilation
    * Automatic star-delta protection combination
    * Control transformer

    SIGMA CONTROL 2
    * Plain text display
    * 30 selectable languages
    * Soft-touch keys with icons
    * Traffic-light LEDs for at-a-glance operational status
    * Fully-automatic monitoring and control
    * Dual, Quadro, Vario and Continuous control modes available as standard
    * Interfaces: Ethernet
    * Optional communication modules for Profibus DP, Modbus, Profinet and DeviceNet
    * SD-card slot for data logging and updates
    * RFID reader
    * Web server

    Hydraulic inlet valve
    The hydraulically operated inlet valves in Kaeser oil-free compression rotary screw compressors are unaffected by contamination and condensate. This makes them more reliable and easier to maintain than pneumatic valves.
    Fibre-free pulse dampers
    Kaeser’s new fibre-free pulse dampers keep pressure losses to an absolute minimum, help maintain consistent air quality and, unlike fibre versions, do not present a source of contamination for the compressed air.
    Reliable oil reservoir venting
    The microfilter in the oil tank venting system prevents the intake of oil-laden air – a key detail to ensure that compressed air quality is reliably maintained at all times.
    Highly efficient condensate separator
    Thanks to its flow-optimised design, the newly developed condensate separator reliably separates the condensate downstream from the air coolers, with minimal pressure loss.

    Bolt-down machine mounts
    * Machine mounts to bolt the machine to the floor

    Heat recovery
    * Integrated heat exchanger system comprising parallel switched tube-type heat exchanger, heat exchanger (water/water), pump, expansion valve and water control valves

    Hot air connection
    * Direct use of the hot compressed air, e.g. for heat regenerating desiccant dryer or as hot process air.
    * With certain models, the desired hot air temperature can be controlled in ranges.

    The technical specifications can be found in this brochure:

    Dry-running rotary screw compressors

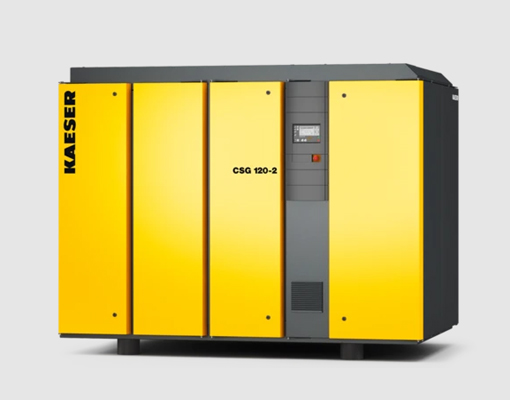

    CSG-2 Series – Brochure
