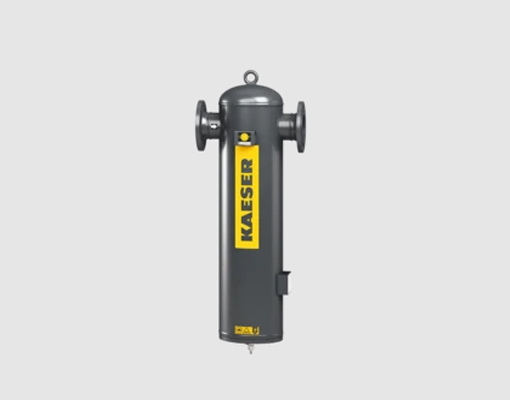

KAESER FILTER products are the key components for supplying compressed air of all purity classes as per the ISO 8573-1 standard. The extremely low differential pressure is the result of efficient filter elements and filter housings with generous nominal widths. Both steel housing sides are coated and painted, providing a clean filtration environment and also ensuring a long filter housing service life.
* Flow rate 35.4 to 336.3 m³/min
* Max. working pressure 16 bar
* Max. operating temperature 60 °C
Standard-compliant purity:
The KAESER FILTER range uses modern deep-pleated filter media to remove particles and aerosols. A highly effective carbon fibre mat traps oil vapours. The impressive performance data of KAESER FILTER products have been determined in accordance with ISO 12500 and confirmed by the independent German “Institut für Energie- und Umwelttechnik e. V.” (IUTA) testing agency.
Minimal pressure loss, maximum savings:
KAESER FILTER products feature generously dimensioned housings and filter surfaces, innovative flow dynamics and high-performance filter media. They feature up to 50% lower pressure loss than other available filters – a value which remains virtually constant over the entire service life of the filter element. This means lower costs and CO2 emissions as well as reduced load on upstream compressors.
Service-friendly design, straightforward handling:

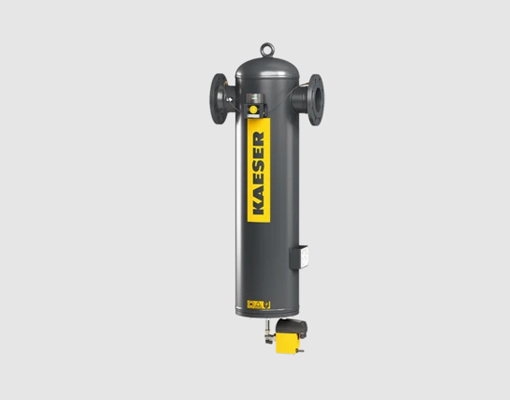

KAESER FILTER products feature a corrosion-resistant steel housing and a stable filter element. Threaded rods and positioning guides ensure rapid element replacement and reliable sealing of filter elements. KB and KE coalescence filters are equipped as standard with the electronic, level-actuated ECO-DRAIN 31 F Vario condensate drain.
Life-cycle cost savings
Pressure loss is the most significant factor affecting the efficiency of compressed air filters. KAESER FILTER products feature generously dimensioned housings and filter surfaces, innovative flow dynamics and high-performance filter media. These features result in up to 50 % lower pressure loss in comparison to other typically available filters. Moreover, this outstanding filtration performance remains virtually constant throughout their entire service life. This reduces the load on upstream compressors, thereby offering the potential for significant reductions in costs and CO2 emissions.
Want to find out more about how Kaeser is cutting life-cycle costs?
KAESER FILTER products demonstrate a lower pressure drop right from the outset compared to other typically available filters on the market. Moreover, the pressure drop remains low for much longer thanks to the high particulate retention capacity.
The result: low operating costs over the long term. The annual maintenance of particulate and coalescence filters mitigates age-related risks and ensures maximum compressed air purity.
* Compressed air inlet
* Connection flange, inlet
* Element thread with positioning aid and flow distributor
* Filter element
* Compressed air outlet
* Connection flange, outlet
* Lifting eye
* Receiver, coated and painted
* Receiver cover
* Angle ball valve, rotatable
* ECO-DRAIN 31 F Vario
* Condensate outlet
The technical specifications can be found in this brochure:
