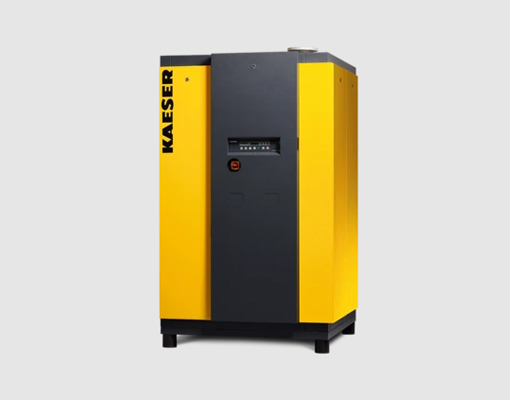

  • Cold-air refrigeration dryers up to 43.33 m³/min

    • Cold-air refrigeration dryers up to 43.33 m³/min

    <p style="text-align: justify; color: #2c2c2c; font-size: 13px;"TCU-series* refrigeration dryers with hot gas bypass control are key components in processes requiring cold, dry compressed air at temperatures as low as 5 °C. For instance, they're key to cooling moulded parts in glass and metal production.

    *Reliably dry compressed air from 4.3 to 43.33 m³/min
    *Compressed air discharge temperature: 5 °C
    *Ambient temperatures up to +43 °C and compressed air inlet temperatures up to +55 °C

    Categories ,

    Your advantages

    Reliable high performance:
    All models are equipped with stainless steel plate-type heat exchangers and ECO-DRAIN electronic condensate drains. Powerfully dimensioned refrigeration units and efficient condensate separators ensure a stable pressure dew point of 3 °C.

    Convenient operation:
    The electronic controller (models TCU 118-2 and higher) features a two-line clear text display with ten selectable languages. Highly visible status indicators provide information about drying performance and current energy savings.

    Reliable remote monitoring:
    Floating contacts (optional on models up to the TCU 95-2) transmit various service and warning messages to master controllers.

    Activated carbon Adsorbers
    ,
    Activated carbon Adsorbers
    Read more
    Energy-saving SECOTEC refrigeration dryers, 45-98m
    ,
    Energy-saving SECOTEC refrigeration dryers, 45-98m
    Read more
    Condensate treatment
    ,
    Condensate treatment
    Read more

    Coolant circuit
    * Refrigerant circuit consisting of scroll compressor
    * Condenser with fan
    * Safety pressure monitor
    * Filter / dryer
    * Thermostatic expansion valve
    * Air/refrigerant stainless steel plate-type heat exchanger
    * Condensate separators

    Controller (model TCU 118-2 and higher)
    * Electronic controller with two-line clear text display; ten selectable languages
    * Three LED status indicators
    * ON/OFF button
    * Test button for electronic condensate drain
    * Three programming keys for timer
    * Reset key
    * Main switch
    * Display of energy savings, current compressed air flow and pressure dew point

    Potential -free contacts
    * Service message for “Refrigerant compressor running”
    * Warning message for “High pressure dew point”
    * Warning message “Condensate drain alarm” (optional on models up to TCU 95-2)

    Enclosure
    * Powder-coated enclosure
    * Machine mounts

    Electrical
    * Electrical equipment and testing to EN 60204-1 “Safety of machines”
    * Control cabinet to protection rating IP 54
